TSM designs, engineers and manufactures drawworks to suit industry requirements. We offer multiple arrangements, configurations and brake systems, and lead the way with innovative practices that keep the size and weight minimal while maintaining total quality standards.

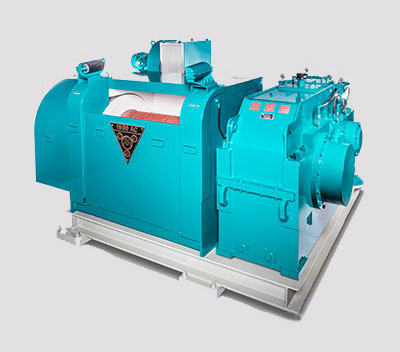

AC
TSM AC drawworks provide optimum performance with less weight and lower maintenance.
| SKU | HP Range | Power Type | Single Line Pull (LBS.) | Typical Mast Rating (LBS.) |
|---|---|---|---|---|
| TSM600AC | 600 | AC | 45,000 | 300,000 |
| TSM850AC | 850 | AC | 54,500 | 440,000 |
| TSM1000AC | 1,000 - 1,200 | AC | 65,000 | 500,000 |
| TSM1500AC | 1,500 | AC | 80,000 | 750,000 |
| TSM2000AC | 2,000 | AC | 107,000 | 1,000,000 |
| TSM3000AC | 3,000 | AC | 135,000 | 1,500,000 |
| TSM3600AC | 3,600 | AC | 152,000 | 1,600,000 |

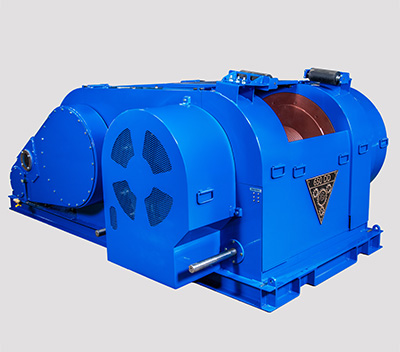

DC
TSM DC drawworks offer a conventional solution that meets and exceeds industry standards.
| SKU | HP Range | Power Type | Single Line Pull (LBS.) | Typical Mast Rating (LBS.) |
|---|---|---|---|---|
| TSM850 | 850 | DC | 54,500 | 440,000 |
| TSM1200 | 1000 - 1200 | DC | 65,000 | 500,000 |
Mechanical
TSM Mechanical drawworks are lightweight, easy-to-maintain, and reliable.
| SKU | HP Range | Power Type | Single Line Pull (LBS.) | Typical Mast Rating (LBS.) |
|---|---|---|---|---|
| TSM500 | 400 - 500 | Mechanical | 37,125 | 250,000 |
| TSM600 | 600 | Mechanical | 45,000 | 300,000 |
| TSM850 (TSM7000) | 750 - 850 | Mechanical | 54,500 | 440,000 |
| TSM1000 | 1,000 - 1,200 | Mechanical | 65,000 | 500,000 |
